ALSD-300 series top valve controller integrates multiple functions of control and feedback switch type valve in accordance with low power. It not only meets the electrical connection requirement of rotary type control valve system, ventilation control and concise and safe site requirement, which has raised the coil’s protective level and extended the service life.
Ordering Guide:
ALSD
—
300
C1
S3
M2
Series
Model

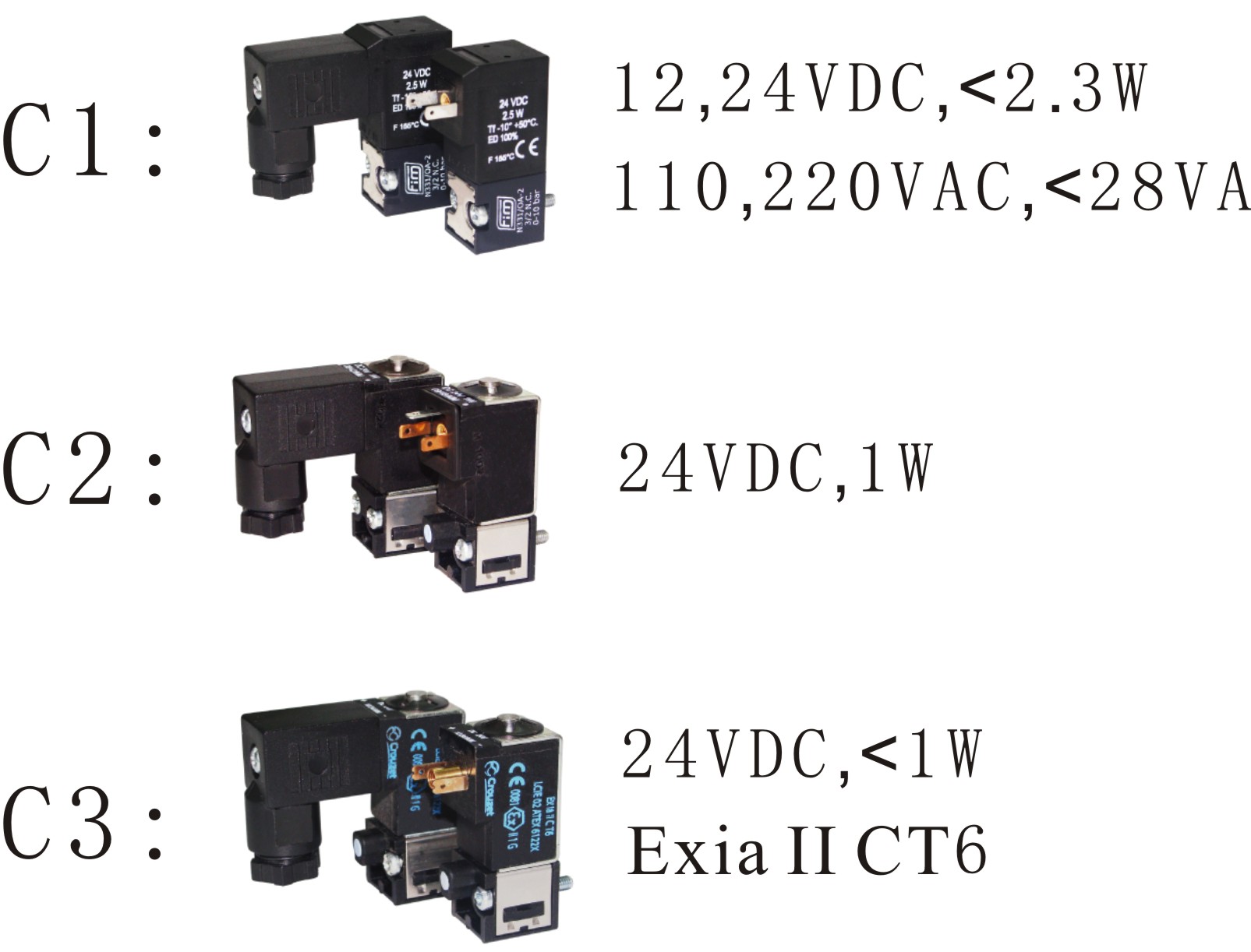

C1:Standard coil
S3:3/2,NC
M2:2SPDT
IP67
C2:Low watt coil
S5:5/2
M3:3SPDT
C3:Intrinsic safe coil
M4:4SPDT
M5:2DPDT
ML2:2SPDT-40℃
PP:P+F(NAMUR)
(ExiaⅡCt6)
PA:Inductive switches(2or3)
QA:Magnet switches(2or3)
F:Internal feedback(4-20mA)
T:AS-i
Note:More functions are available for ALSD-300/400/500

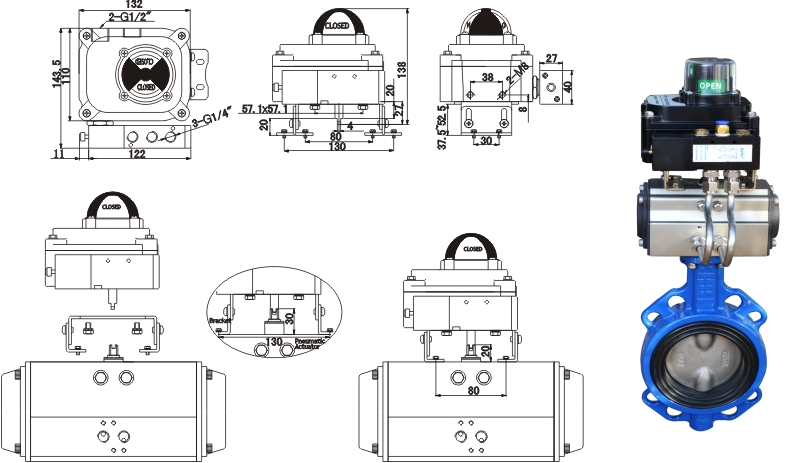

Dimension:
Note: Contcet us for more details of technologue.
